Simpson Strong-Tie PISBMAXI 200mm x 200mm Heavy Duty Elevated Post Base Pre-Galvan 6453


Price:
Sale price$127.00

Description

Simpson Strong-Tie PISBMAXI 200mm x 200mm Heavy Duty Elevated Post Base Pre-Galvan 6453

The Simpson Strong-Tie PISBMAXI is a heavy duty elevated post base to suit various sizes of timber and Glulam posts.



PRODUCT DIMENSIONS

References Product Dimensions [mm] Top plate holes Bottom plate holes
A B C D E F G H t1 t2 Ø13 Ø17
PISBMAXIG-B 120 120 105 200 200 148 70 90 8 15 2 4

SIMPLIFIED CHARACTERISTIC CAPACITIES - TIMBER TO CONCRETE

References Number of Fasteners Simplified characteristic capacities - Timber C24 [kN]
On post On concrete R1,k** R2,k R3,k** R4,k
Qty Type Qty Type Dowel length [mm] Dowel length [mm] Dowel length [mm]
120 140 160 120 140 160 120 140 160
PISBMAXIG-B 2 Ø12 4 Ø16* 272.2 34.5 38.5 42.1 22.5 20.1 20.1 7.7 9.9 12.3

Material

Material Grade S235 Finish Post hot dip galvanised.

Benefits

  • The post base is made of 15mm thick plates welded to a Ø70mm tube.
  • The column is fixed to an 8mm thick vertical plate with holes to suit Ø12mm dowels.

Suitable On

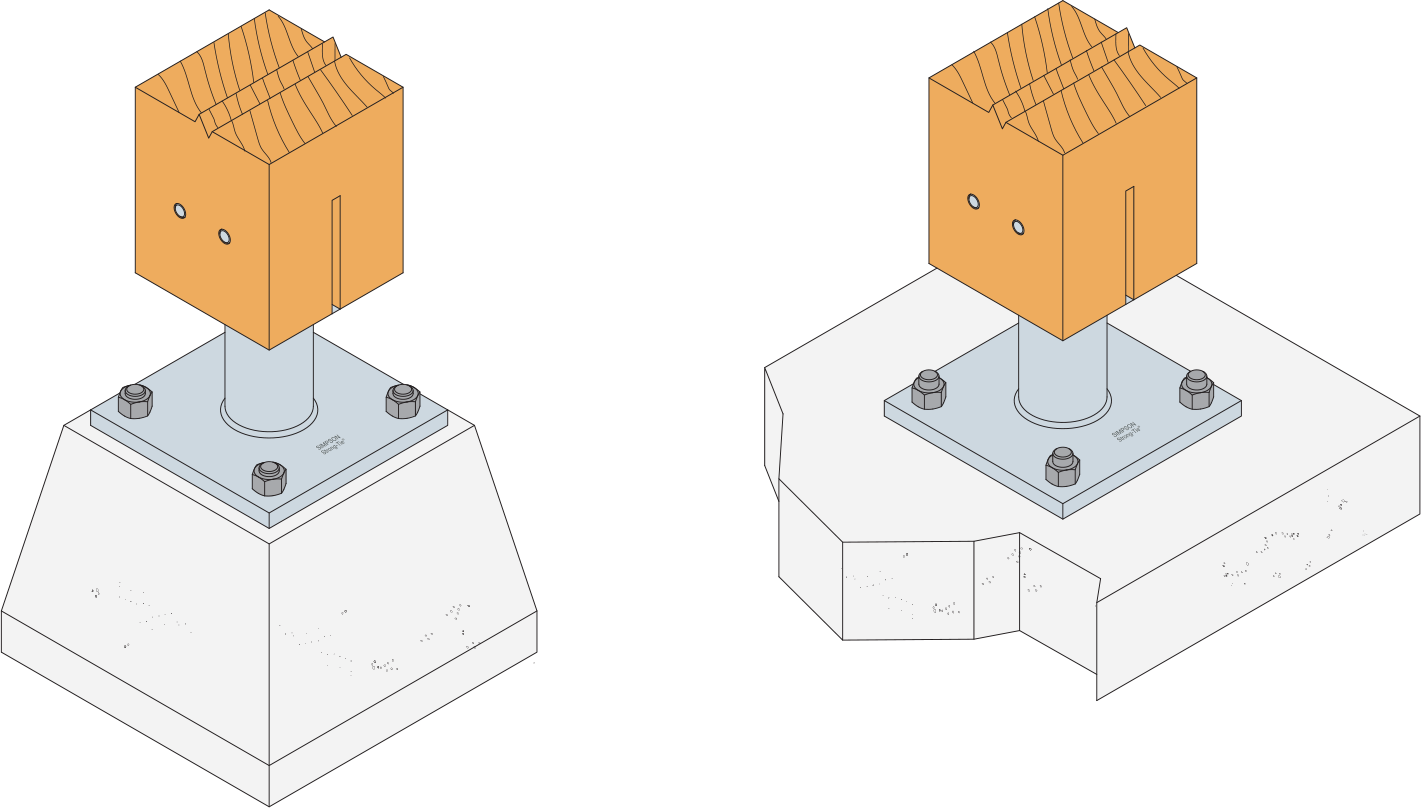

Timber / Glulam columns to solid foundations

Scope

The PISBMAXI is a heavy duty elivated post base to suit various sizes of timber and Glulam posts
5701953356453
